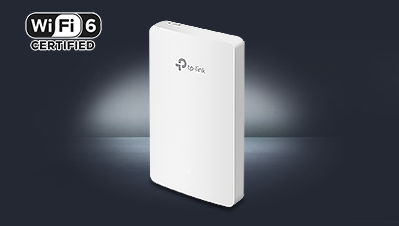

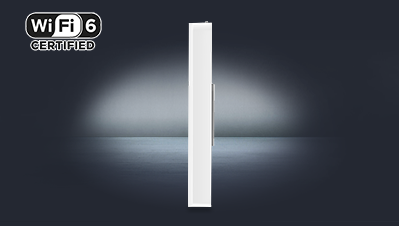

| Model | TP-LINK EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point |
| HARDWARE FEATURES : | |
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port |
| • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port | |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE |
| Power Consumption | • EU: 10W (802.3at PoE, PoE Out off) |
| • US: 11.5W (802.3at PoE, PoE Out off) | |
| Dimensions ( W x D x H ) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas |
| 5 GHz: 2× 5 dBi | |
| • 2.4 GHz: 2× 3 dBi | |
| Weatherproof Enclosure | • 5 GHz: 2× 4 dBi |
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES : | |
| Wireless Client Capacity | 100+△ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps |
| • 2.4 GHz: Up to 574 Mbps | |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) |
| • Enable/Disable Wireless Radio | |
| • Automatic Channel Assignment | |
| • Transmit Power Control (Adjust Transmit Power on dBm) | |
| • QoS(WMM) | |
| • Seamless Roaming† | |
| • Beamforming | |
| • MU-MIMO | |
| • Rate Limit | |
| • Load Balance | |
| • Airtime Fairness | |
| • Band Steering | |
| • Reboot Schedule | |
| • Wireless Schedule | |
| • RADIUS Accounting | |
| • MAC Authentication | |
| • Wireless Statistics | |
| • Static IP/Dynamic IP | |
| Wireless Security | • Captive Portal Authentication** |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • VLAN | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| OTHERS : | |
| Certification | CE, FCC, RoHS |
| Package Contents | • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall |
| • Installation Guide | |
| • Mounting Kits | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
| Warranty | Limited Lifetime Warranty |
