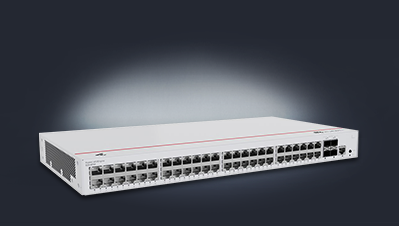

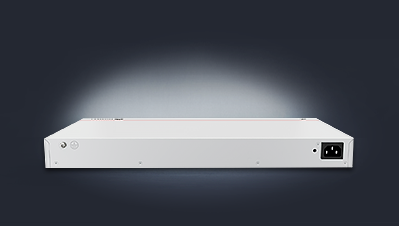

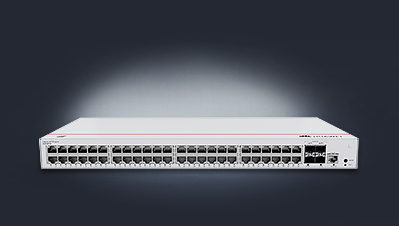

| Model | Switch “ Huawei eKitEngine S220 Series Switches |
| SKU | HW-DATACOM-S220-48P4S(380W) |
| Switch | Layer 2 Switches |
| Fixed port | 48 x 10/100/1000BASE-T ports(380W PoE+), 4 x GE SFP ports |
| Switching capacity | 104 Gbps |
| Packet forwarding | 77 Mpps |
| Power module type | Built-in AC power module |
| Rated voltage | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum power consumption | PoE: 380W |
| • Without PoE: 63.7W | |
| • With PoE: 462.8W | |
| Noise | • Sound power at normal temperature: 49.3 dB (A) |
| • Sound power at high temperature: 63 dB (A) | |
| • Sound pressure at normal temperature: 37.3 dB (A) | |
| Long-term operating temperature | -5 °C to +50 °C |
| Storage temperature | -40 °C to +70 °C |
| Relative humidity | 5% to 95% (non condensing) |
| Service port surge protection | Common mode: ±7 kV |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
| Weight | 4.29 kg |
| Warranty | 3 Years. Warranty |
