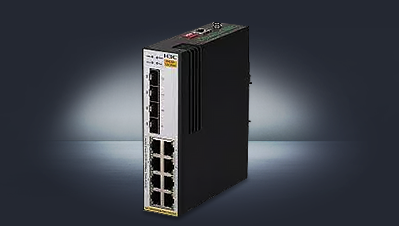

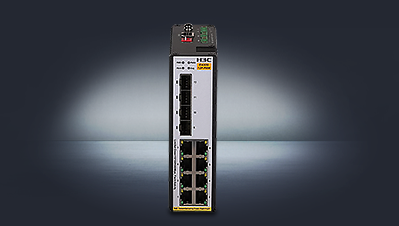

| Model | Switch “ H3C IE4300-12P-PWR L2 Industrial Ethernet Switch with 8*10/100/1000Base-T PoE+ Ports and |
| 4*1000BASE-X SFP Ports (8GE (PoE+)+4SFP, Dual DC) | |
| SKU | LS-IE4300-12P-PWR |
| Switch | Layer 2 Switch |
| I/O Ports and Slots | 8 × 10/100/1000 BASE-T Ethernet ports (PoE+), 4 × 1000 BASE-X SFP optical ports; |
| Switching capacity | 24Gbps |
| Forwarding capacity | 17Mpps |
| Power dedicated to PoE | 125W |
| Input | Rated voltage range: 100 to 240 VAC @50 or 60 Hz |
| Voltage | Max voltage range: 85 to 264 VAC @45 to 65 Hz |
| Power consumption | MIN: 7W/ MAX: 12W |
| Operating temperature | - 40 ～ 75℃ |
| Storage temperature | - 40 ～ 75℃ |
| Cluster Management | Support |
| Port Aggregation | Support |
| Ethernet Switching | Store-and-Forward |
| Jumbo Frame | Support |
| MAC Address Table | 16K MAC Address |
| Static MAC Address | |
| Dimensions(W × D × H) | 149*129.8*44mm |
| Weight | ≤ 1kg |
| Warranty | 1 Year Warranty (9x5 NBD) |
