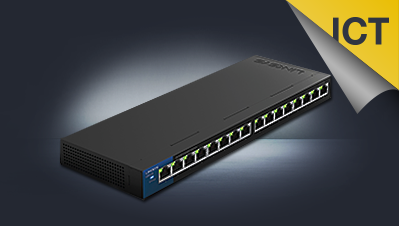

| Model | Linksys LGS116 16-Port Unmanaged Gigabit Switch |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az |
| Number of Ports | 16 Gigabit |
| MAC Address Table Size | 8,000 entries |
| Speed | 10/100/1000 |
| Bandwidth | 32 Gbps (non-blocking) |
| Quality of Service | 802.1p and DSCP |
| Status LEDs | Link, speed, and activity indicators |
| Power Supply | External |
| Power | 110–240V AC, 50/60Hz, 12V DC, 1.0A |
| Power Saving | Cable connected detection, Sleep mode |
| Power Consumption in Idle/Use (100% Traffic) | 2.66W / 9.32W |
| Enclosure Type | Metal |
| Unit Dimensions | 280 x 120 x 25 mm (109.2 x 46.8 x 9.75 in.) |
| Unit Weight | 0.774 kg (1.71 lbs) |
