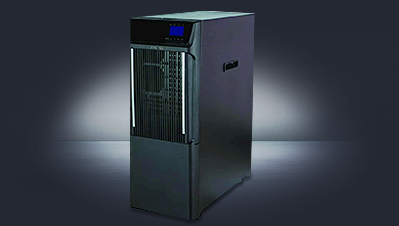

| Model | [TE-6k] UPS Syndome Titan Elite (TE) 6000VA/6000W |
| Chassis | Tower |
| Capacity | 6000VA/6000Watts (PF1.0) |
| INPUT : | |
| Voltage Range | 110 - 275 VAC |
| Frequency Range | 45-55Hz/54-66Hz (extendable to 40-70Hz when load <60%) |
| Phase | Single phase with ground |
| Current THDI | <3% |
| Power Factor | >0.995 |
| Generator Input | 1.5 x UPS Rating Power |
| OUTPUT : | |
| Voltage Range | 220VAC/230VAC/240VAC (± 1%) |
| Phase | Single phase with ground |
| Frequency (Synchonized Range) | 45-55Hz/54-66Hz (extendable to 40-70Hz when load <60%) |
| Frequency (Battery Mode) | 50/60Hz ± 0.01Hz |
| Current Crest Ratio | 3 : 1 |
| Harmonic Distortion | < 1% THD @Linear Load , <5% @non-linear load |
| Protection | Short Circuit Protection |
| Output Waform | Pure Sinewave |
| Outlet | Terminal Block |
| Overload Capacit | Line Mode 10 min @ 105%~125% ; 30 sec @ 125% ~ 150% ; 500 msec @ > 150% |
| Battery Mode 1 min @ 105%~125% ; 30 sec @ 125% ~ 150% ; 500 msec @ > 150% | |
| EFFICIENCY : | |
| AC Mode / Battery Mode | > 95% / >95 % |
| ECO mode | > 98% |
| BATTERY : | |
| Number of Batteries Per Set | 16/17/18/19/20 |
| Battery Capacity (Ahr) | 12V/(7/9)Ahr |
| Backup Time (depend on load) | >15 min |
| Recharge Time (to 90%) | 3 Hours |
| Charging Current (Max.) | 1.5A |
| Charge Current Adjustable | default 1A(0-4A) |
| Rated Battery Voltage | 192-240 Vdc (adjustable) |
| Battery Type | Sealed Lead Acid Maintennace Fee |
| TRANSFER TIME : | |
| AC to DC | Zero |
| INDICATOR : | |
| LED & LCD display | LED: Online mode, Battery mode,Bypass/Standby mode, Fault |
| LCD: Input/Output Voltage&Frequency, Load level,Load Watt, Load VA, Battery Voltage,Battery status,Converter | |
| mode, Battery Remaining Time,Battery running Time, UPS status, Fault indicator, Event Log,etc. | |
| AUDIBLE ALARM : | |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously Sounding |
| ENVIRONMENT : | |
| Relative Humidity | 0-95% (NON-CONDENSING) |
| Noise Level | <45dB @ 1 Meter |
| INTERFACE : | |
| USB & RS-232 | Software supports Windows Family, Linux, Sun Solaris, IBM AIX, Compaq True64, SGI IRIX, FressBSD, HP-UX and MAC |
| Smart Slot (Option) | SNMP Adapter/ AS400 Relay Card / RS485 / USB |
| STANDARDS : | |
| CE | Safety (IEC62040-1-1), EMC: IEC/EN 62040-2, IEC 61000-4-2(ESD):level 3, IEC 61000-4-3 (Radiated field): level 3, |
| IEC 61000-4-4(EFT):level 4, IEC61000-4-5 (Fast transients): level 4, IEC 61999-4-6 (Electromagnetic field): level 3, | |
| IEC 61000-4-8 (Conducted magnetic field):level 4, Performance: IEC/EN 62040-3 | |
| Dimension (W x H x D) | 220 x 589 x 492 mm. |
| Weight | 52.7 kg |
