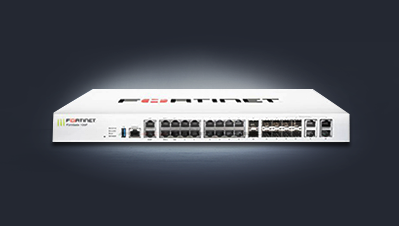

| Model | FortiGate 100F |
| Form Factor | Rack Mount, 1 RU |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/HA/DMZ Ports | 1/2/2001 |
| IPS Throughput 2 | 2.6 Gbps |
| NGFW Throughput 2, 4 | 1.6 Gbps |
| Threat Protection Throughput 2, 5 | 1 Gbps |
| Firewall Throughput(1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 5 us |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) 1 | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 |
| SSL-VPN Throughput | 750 Mbps |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | 44 x 432 x 254 mm. |
| Weight | 7.25 lbs (3.29 kg) 7.56 lbs (3.43 kg) |
