| Model | Fortinet FortiWiFi 60F |
| Hardware Specifications : | |
| GE RJ45 WAN / DMZ Ports | 2 / 1 |
| GE RJ45 Internal Ports | 7 |
| GE RJ45 FortiLink Ports | 2 |
| Wireless Interface | 802.11 a/b/g/n/ac-W2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| System Performance — Enterprise Traffic Mix: | |
| IPS Throughput | 1.4 Gbps |
| NGFW Throughput | 1 Gbps |
| Threat Protection Throughput | 700 Mbps |
| System Performance : | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 10/10/6 Gbps |
| Firewall Throughput (Packets Per Second) | 9 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) 1 | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 750 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 400 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) 2 | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 8 Gbps |
| Virtual Domains (Default / Maximum) | 45,575 |
| Maximum Number of FortiSwitches Supported | 16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 45,595 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Operating Environment and Certifications : | |
| Input Rating | 12Vdc, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
| Maximum Current | 115V AC / 0.2A, 230V AC / 0.1A |
| Power Consumption (Average / Maximum) | 17.2W / 18.7W |
| Heat Dissipation | 63.8 BTU/hr |
| Dimensions : | |
| Height x Width x Length | 1.5 x 8.5 x 6.3 in/ 38.5 x 216 x 160mm |
| Weight | 2.23 lbs (1.01 kg) |

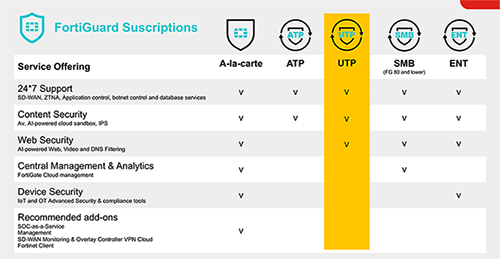

| Warranty | 1Yr Hardware plus 24x7 Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, |
| Web Filtering, Antispam Service, and 24x7 FortiCare) |
