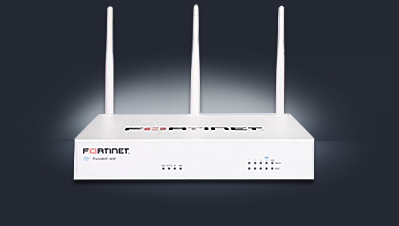

| Model | Fortinet FortiWiFi 40F |
| Hardware Specifications : | |
| GE RJ45 WAN / DMZ Ports | 1 |
| GE RJ45 Internal Ports | 3 |
| GE RJ45 FortiLink Ports | 1 |
| GE RJ45 PoE/+ Ports | None |
| Wireless Interface | 802.11 a/b/g/n/ac-W2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| System Performance — Enterprise Traffic Mix : | |
| IPS Throughput | 1 Gbps |
| NGFW Throughput | 800 Mbps |
| Threat Protection Throughput | 600 Mbps |
| System Performance: | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5/5/5 Gbps |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) 1 | 4.4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 490 Mbps |
| Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 310 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 320 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) 2 | 990 Mbps |
| CAPWAP Throughput (HTTP 64K) | 3.5 Gbps |
| Virtual Domains (Default / Maximum) | 45,575 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 45,422 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions: | |
| Height x Width x Length | 1.5 x 8.5 x 6.3 in/ 38.5 x 216 x 160mm |
| Weight | 2.2 lbs (1 kg) |

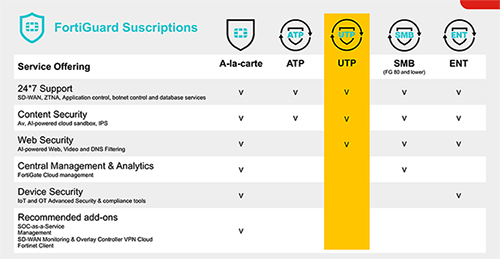

| Warranty | 1Yr Hardware plus 24x7 Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, |
| Web Filtering, Antispam Service, and 24x7 FortiCare) |
