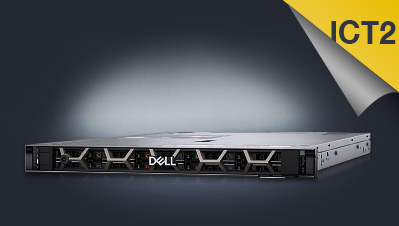

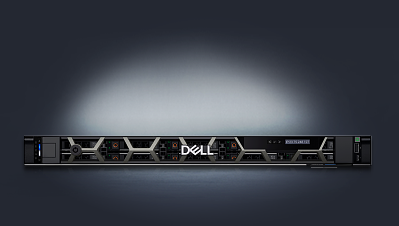

| Model | Dell PowerEdge R6625 Breakthrough performance | ||
| Form Factor | 1U rack server | ||
| Processor | Up to two AMD EPYC 4th Generation 9004 Series with up to 128 cores per processor | ||
| Memory | • 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s | ||
| • Supports registered ECC DDR5 DIMMs only | |||
| Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i | ||
| • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB | |||
| • External HBAs (non-RAID): HBA355e | |||
| • Software RAID: S160 | |||

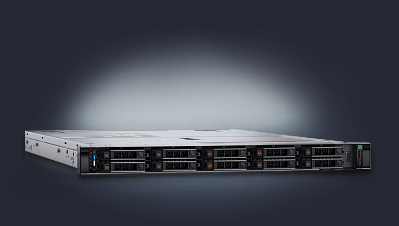

| Drive Bays | Front bays: | ||
| • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB | |||
| • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB | |||
| • Up to 10 x 2.5-inchSAS/SATA/NVMe (HDD/SSD) max 153.6 TB | |||
| • Up to 14 x E3.S NVMe direct drives max 107.52 TB | |||
| • Up to 16 x E3.S NVMe direct drives max 122.88 TB | |||
| Rear bays: | |||
| • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB | |||
| • Up to 2 x E3.S NVMe direct drives max 15.36.8 TB | |||
|
Power Supplies Supplies |
• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant | ||
| • 1400 W Mixed Mode Platinum 100-240 VAC or 240 HVDC hot swap redundant | |||
| • 1400 W Mixed Mode Titanium 277 VAC or 336 HVDC hot swap redundant | |||
| • 1100 W Mixed mode 100—240 VAC or 240 HVDC, hot swap redundant | |||
| • 1100 W LVDC -48 — -60 VDC, hot swap redundant | |||
| • 800 W Platinum 100—240 VAC or 240 HVDC , hot swap redundant | |||
| • 3200 W 277 VAC and 336 HVDC Titanium | |||
| • 1400 W -48VDC 60mm | |||
| Cooling Options | • Air cooling | ||
| • Optional Direct Liquid Cooling (DLC) | |||
| Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate. | |||
| Fans | • Standard (STD) fans/High performance Gold (VHP) fans | ||
| • Up to 4 sets (dual fan module) hot plug fans | |||
|
Embedded Management |
• iDRAC | ||
| • iDRAC Direct | |||
| • iDRAC RESTful API with Redfish | |||
| • iDRAC Service Manual | |||
| • Quick Sync 2 wireless module | |||
| Bezel | • Optional LCD bezel or security bezel | ||
| OpenManage Software | • OpenManage Enterprise | ||
| • OpenManage Power Manager plugin | |||
| • OpenManage Service plugin | |||
| • OpenManage Update Manager plugin | |||
| • CloudIQ for PowerEdge plug in | |||
| • OpenManage Enterprise Integration for VMware vCenter | |||
| • OpenManage Integration for Microsoft System Center | |||
| • OpenManage Integration with Windows Admin Center | |||
| Mobility | OpenManage Mobile | ||
| Embedded NIC | 2 x 1 GbE LOM card (optional) | ||
| Network options | 1 x OCP 3.0 card (optional) | ||
| Note: The system allows either LOM card or an OCP card or both to be installed in the system | |||
| GPU options | 3 x 75 W SW | ||
| Ports | Front Ports: | ||
| • 1 x iDRAC Direct (Micro-AB USB) port | |||
| • 1 x USB 2.0 | |||
| • 1 x VGA | |||

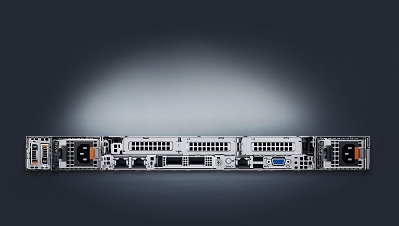

| Rear Ports: | |||
| • 1 x Dedcated iDRAC Ethernet port | |||
| • 1 x USB 3.0 | |||
| • 1 x USB 2.0 | |||
| • 1 x Serial (optional) | |||
| • 1 x VGA (optional for Direct Liquid Cooling configuration) | |||
| Internal Ports: | |||
| • 1 x USB 3.0 (optional) | |||
| PCIe | Up to three PCIe slots | ||
| • Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length | |||
| • Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length | |||
| • Slot 3: 1 x16 Gen5 or1 x16 Gen4 Low profile, Half length | |||
|
Operating System and Hypervisors |
• Canonical Ubuntu Server LTS | ||
| • Microsoft Windows Server with Hyper-V (P-Core only) | |||
| • Red Hat Enterprise Linux | |||
| • SUSE Linux Enterprise Server | |||
| • VMware ESXi | |||
| • Dell NativeEdge OS* | |||
| For specifications and interoperability details, see Dell.com/OSsupport. | |||
| Warranty | 3Yrs ProSupport with 4-Hour Onsite Service + 3Yrs Keep Your Hard Drive | ||
