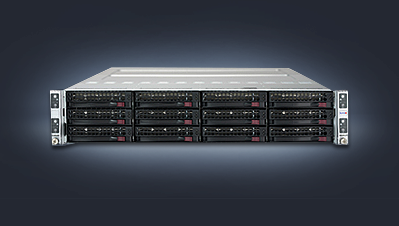

| Product SKUs | SuperServer 6029TP-HTR (Black) |
| Form Factor | 2U Rackmount |
| Processor/Cache (per Node) | Dual Socket P (LGA 3647) |
| 2nd Gen Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s | |
| Support CPU TDP 70-165W* | |
| Cores Up to 28 Cores with Intel® HT Technology | |
| System Memory (per Node) | Memory Capacity 16 DIMM slots, Up to 2TB ECC 3DS LRDIMM, 2TB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM |
| On-Board Devices (per Node) | Chipset Intel® C621 chipset |
| SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 support | |
| Network Controllers Barebones and Complete System must | |
| have at least one SIOM or network card installed per node | |
| IPMI Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Graphics ASPEED AST2500 BMC | |
| Input / Output (per Node) | SATA 3 SATA3 (6Gbps) ports |
| LAN 1 RJ45 Dedicated IPMI LAN port | |
| USB 2 USB 3.0 ports total (rear) | |
| VGA 1 VGA port | |
| Serial Port / Header 1 Fast UART 16550 port / 1 Header (internal) | |
| System BIOS | AMI 32MB SPI Flash ROM |
| Expansion Slots (per Node) | 2 PCI-E 3.0 x16 Low-profile slots |
| 1 SIOM card support | |
| Drive Bays (per Node) | 3 Hot-swap 3.5" SATA3 HDD trays |
| Dimensions | Width 17.25" (438mm) |
| Height 3.47" (88mm) | |
| Depth 30.5" (774mm) | |
| Weight | Gross Weight: 90 lbs (40.9kg) |
| Net Weight: 72 lbs (32.7 kg) | |
