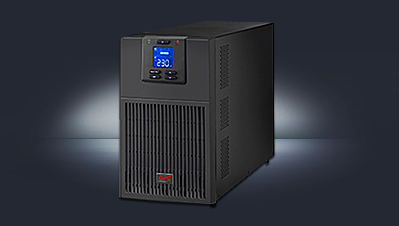

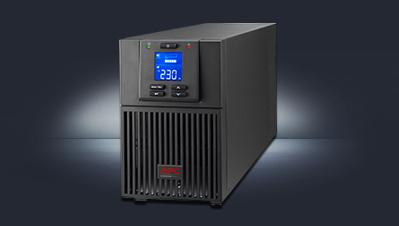

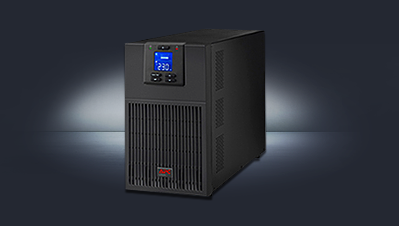

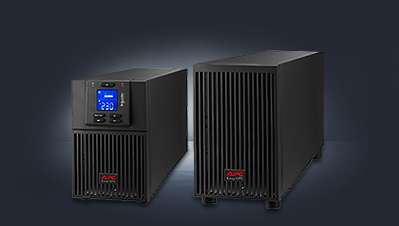

Model |
SRV3KI |
|
|
Power Capacity |
2400 W / 3000 VA |
|
|
Nominal Output Voltage |
220/230/240 VAC |
|
|
Output Frequency Range(sync mode) |
47-53 Hz or 57-63 Hz |
|
|
Topology and output waveform |
Double conversion online; sine wave |
|
|

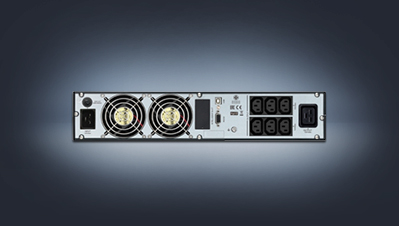

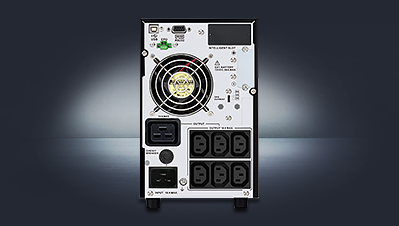

Output Connections |
(6) IEC C13, (1) C19 |
|
|
Input Nominal Input Voltage |
220/230/240 VAC |
|
|
Input Frequency |
40 - 70 Hz
|
|
|
Input Voltage Range |
110-300 at 60% load |
|
|
Input Connection |
IEC C20 |
|
|
Battery Type |
12 V / 9 AH X6 |
|
|
Typical recharge time |
4 hours to recover to 90% capacity |
|
|
Half Load Runtime (min) |
10 |
|
|
Full Load Runtime (min) |
4 |
|
|
DB-9 RS-232 |
Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC |
|
|
Intelligent Slot |
Mini slot |
|
|
Control panel and audible alarms |
Multi-function LCD status and control console |
|
|
Dimension DxWxH(mm) |
425 x 190 x 336 |
|
|
Weight (kgs) |
26.8 kg |
