Brand |
APC |
|
|
|
|
Model
|
BK500EI |
|
|
|
|
Rated Capacity
|
300 Watts / 500 VA |
|
|
|
|
Weight
|
6.30 kg |
|
|
|
|
Nominal Input Voltage
|
230VAC, single phase, 50/60 Hz +/- 3 Hz (auto sensing) |
|
|
|
|
Input Frequency
|
50/60 Hz +/- 3 Hz (auto sensing) |
|
|
|
|
Input Connections
|
IEC-320-C14 inlet |
|
|
|
|
Cord Length
|
1.83 meters |
|
|
|
|
Input voltage range for main
|
180 - 266V |
|
|
|
|
Maximum Input Current
|
7A |
|
|
|
|
Input Breaker Capacity
|
7.0 A |
|
|
|
|
Battery Type
|
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
|
|
|

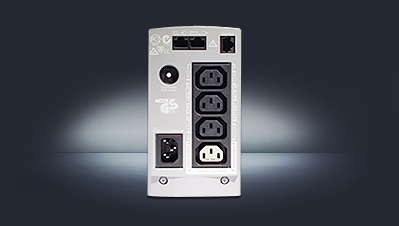

Output Connections
|
(1) IEC 320 C13 (Surge Protection) |
|
|
(3) IEC 320 C13 (Battery Backup) |
|
|
(2) IEC Jumpers (Surge Protection) |
|
|
|
|
Waveform Type
|
Stepped approximation to a sinewave |
|
|
|
|
Output Frequency (sync to mains)
|
47 - 63 Hz |
